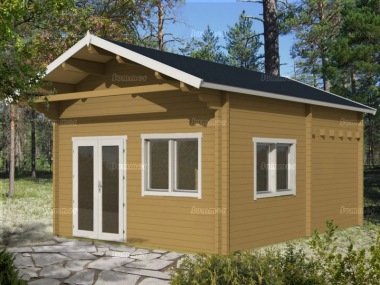

Three Room Apex Log Cabin 505 - Large Panes, Double Glazed, Loft Area

• Individually made to order
• You can position the door and windows anywhere or choose the standard door and window layout, all at the same price
• All timber used in the construction of these log cabins originates from sustainable forests
• Interlocking 70mm thick tongued and grooved wall logs
• All logs double grooved for superior draughtproofing
• Strong tongued and grooved roof boards approximately 18mm thick
• Strong tongued and grooved floor boards approximately 26mm thick
• Substantial 3"x2" floor joists and foundation beams, finished size 60x70mm
• Substantial ex 5" roof purlins, finished size 120x70mm
• Morticed and tenoned joinery door and window
• Double hinged main doors
• 2 fully boarded single hinged internal doors
• Mortice lock with handles and keys
• 1 side hinged tilt and turn double opening front window
• 1 side hinged tilt and turn double opening side window
• 2 side hinged tilt and turn opening rear windows
• 1 loft opening window
• Contemporary plain glazing
• Double glazed doors and windows
• Premium double glazed windows with 24mm thick double glazing units, 16mm air gaps, weatherstripped sash openings and profiled aluminium cills for durability
• Decorative fascia boards
• Metal door threshold
• Internal skirting boards
• Chamferred top wall logs
• Pre assembled gables
• Metal storm bars
• Front roof canopy projection approximately 1.0m (3'3")
• Eaves height approximately 2.1m (6'11")
• Ridge height varies according to width of cabin

4.4m x 5.95m log cabin

• External cabin size 4.4m wide x 5.95m deep (14'5" x 19'6")
• Main room approximate internal size 4.06m wide x 2.92m deep (13'4" x 9'7")
• Second room approximate internal size 2.00m wide x 2.62m deep (6'7" x 8'7")
• Third room approximate internal size 2.00m wide x 2.62m deep (6'7" x 8'7")
• Loft area approximate internal size 4.06m wide x 2.62m deep (13'4" x 8'7")
• Minimum base size 4.2m wide x 5.75m deep (13'9" x 18'10")

4.4m x 6.45m log cabin

• External cabin size 4.4m wide x 6.45m deep (14'5" x 21'2")
• Main room approximate internal size 4.06m wide x 3.17m deep (13'4" x 10'5")
• Second room approximate internal size 2.00m wide x 2.87m deep (6'7" x 9'5")
• Third room approximate internal size 2.00m wide x 2.87m deep (6'7" x 9'5")
• Loft area approximate internal size 4.06m wide x 2.87m deep (13'4" x 9'5")
• Minimum base size 4.2m wide x 6.25m deep (13'9" x 20'6")

LOG CABINS - THE BENEFITS: Log cabins are popular for many reasons, especially as a comfortable garden room to sit and relax in but also as a workshop or heavy duty storage shed. On the outside cabins have a chunky look and feel. On the inside, with no internal framework, the clean lines look smarter than the inside of a traditional shed or summerhouse. In addition, the wall logs are thicker than the shiplap cladding used in traditional sheds and summerhouses, which provides better insulation. If you want the option of winter use we recommend floor and roof insulation, which is difficult to fit retrospectively so it needs to be fitted with the cabin. We offer low price insulation packs complete with fixings and instructions. Where available, double glazing also improves the insulation especially if the cabin has a large glazed area. Another significant benefit of log cabins is that you get more wood for your money when compared with a traditional shed or summerhouse or garden office. With no prefabricated wall panels a log cabin requires less production time.

SCANDINAVIAN REDWOOD OR WHITEWOOD: The most widely used timber in the UK for years, Scandinavian Redwood and Whitewood grow in the well managed forests of Scandinavia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than faster growing trees from warmer climates. As a result the timber is heavy and durable with a close grain pattern. The wood is seasoned and kiln dried to achieve the correct moisture content before it is machined. Redwood and Whitewood are so similar in appearance and performance that it is difficult to tell the difference. Both are classified as slightly durable and treatment is required for outside use. The forests of Scandinavia and Northern Europe have been responsibly managed on a sustainable basis for centuries so Scandinavian Redwood or Whitewood is an enviromentally friendly choice.

NATURAL WOOD: First, high grade timber is dried in kilns until it reaches the optimum moisture content, then it is planed smooth and machined into tongued and grooved logs and boards. Next the logs are precisely machined at the ends to ensure a precise fit. Finally, each cabin is carefully packed and wrapped. When you unwrap it the wood is untreated. We recommend treating it only after the cabin has been successfully installed and ideally within a week or two. Treating the logs before fitting may cause the wood to swell up and the logs may not fit together correctly. If you are fitting your cabin in a restricted space where future access will be difficult you can stain the logs during installation by reaching down a few logs at a time as you fit them.

FULLY INTERLOCKING LOG CORNERS: These traditionally made log cabins feature interlocking corner logs. Each wall log is precisely machined and notched out to ensure a strong and weatherproof joint. The first log is laid at the bottom and the rest slot into each other, working upwards one log at a time. No screws or nails are required which makes installation easier and also allows for timber movement. The finished corner assembly is not only immensely strong but also weatherproof and draughtproof. If possible cabins with interlocking logs should be treated after assembly. Treating the logs on site before fitting requires considerable care. If swollen the precision milled joints may not slot together.

WEATHERPROOF DOUBLE GROOVED LOGS: Thinner wall logs feature a single tongue and groove but thicker logs feature a double tongue and groove. The double tongue and groove provides a stronger and more weatherproof joint. Thicker logs also provide improved insulation.

CHAMFERRED TOP WALL LOGS: This high specification building features a subtle quality feature. The top log in each side wall is chamferred to the same angle as the roof slope. This little detail provides much improved insulation and draughtproofing. It also provides a much neater internal appearance and the roof boards are easier to fix. This simple design feature eliminates an obvious cold spot. The benefits of this feature are magnified if roof insulation is specified.

HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.

METAL STORM BARS: Storm bars are an important quality feature. One obvious benefit is that storm bars help to protect your log cabin from wind damage. In addition, by clamping the logs together storm bars make the joints more weatherproof and reduce any bowing or twisting of the logs. The storm bars are fitted at each corner to hold the individual logs together tight. This counters the impact of strong winds. This feature is especially useful if the cabin has a large roof overhang which is exposed to the wind. Many log cabins do not include any storm bars at all and those that do normally include timber storm battens. These metal storm bars are much stronger and neater, being almost completely invisible. Substantial full height threaded steel rods are passed through every log at each corner and bolted at the top and bottom. The bottom of the rods are easily accessible after installation so they can be tightened or loosened as required to allow for any timber movement. It is only possible to fit threaded rods in cabins with thicker logs, because drilling holes in thinner logs reduces their structural integrity.

JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.

HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.

DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.

ALUMINIUM WINDOW CILLS: Our high performance premium windows feature profiled aluminium external cills for durability. The modern profile design also allows rainwater to drain away from within the window which prolongs the life of the window and the double glazed units.

METAL DOOR THRESHOLD: A weatherproof metal threshold is included to provide sustained access for heavy items such as ride on mowers and motorbikes. Without a metal threshold the wooden frame is vulnerable to wear and the elements. Over time a metal threshold will extend the effective lifespan of the door.

SIZES - DEPTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the depth. The width refers to the angled gable walls at the front and rear including the door wall. The depth refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. Many other suppliers quote the overall roof size which is much larger. All sizes are approximate.

• Choice of the standard design or you can change the sizes, room layout, doors or windows
• The door and front window positions can be reversed on site and do not need to be specified when ordering
• Additional single or double opening windows
• A choice of roof coverings, insulation and base kits at exceptionally low prices and all supplied with fixings and detailed instructions
• Untearable roofing felt
• Decorative mineral felt tiles
• Cedar shingle roof with genuine individual cedar tiles traditionally made using only the finest Western Red Cedar
• Granular steel roof tiles with a maintenance free mineral surface which looks and lasts like clay tiles
• Floor insulation
• Roof insulation
• Recycled plastic base kits
• A choice of composite decking kits
• Portable indoor gas heaters - no need for an electricity supply or trailing leads
• A selection of microporous wood preservatives in a wide choice of colours
• Natural wood oil preservative in a choice of colours

QUALITY ACCESSORIES AT LOWER PRICES: Since we were established in 1981 we have developed a unique expertise which is reflected in our superb range of great value accessories. We offer a wide choice of durable roof coverings, high performance floor and roof insulation and heavy duty relocatable base kits. Each kit includes suitable materials and fixings in sufficient quantities with detailed instructions. We offer quality components at very competitive prices. This service is only available to customers who buy one of our buildings and our accessories are not available separately.

CUSTOMISATION CHARGE: This fully bespoke log cabin can be customised to suit your individual requirements. You can change the overall size, the room sizes, the room layout, the doors and the windows. A customisation charge is payable for any change which covers the additional design work.

ADDITIONAL OPENING WINDOWS: Additional windows are an inexpensive way to provide more natural daylight and improved ventilation. You can also customize the window layout to ensure the best view. These log cabins are individually made to order so we can make the door and window openings in the factory with pre-cut wall logs for quicker and easier assembly. If you choose this option a customisation charge is payable which covers the additional design work and we will need to agree the exact position of the openings with you before your cabin is made. If you prefer we can supply the additional windows with no pre-cut openings for you to decide during installation. If you choose this option no customisation charge is payable and you do not need to specify in advance where you want to site the additional windows. Instead you will need to cut the logs during assembly. This is a straightforward task with simple 90 degree cuts and all cut edges are concealed by cover trims.

GRANULAR STEEL ROOF TILES: These lightweight granular steel roof tiles are guaranteed for 40 years. The tiles have been tried and tested in every climate throughout the world from hurricanes and hailstones to heatwaves. Uses include homes, flats, schools, offices and all types of buildings. The tiles are pressed from galvanized steel with two further protective layers of weather resistant acrylic and a coverage of natural stone chips. The natural stone chips are bonded to the tiles to give a weatherproof surface with an attractive textured appearance similar to clay tiles. The appearance of colours and shades may vary between different screens or devices.

CEDAR ROOF SHINGLES: Attractive and durable, cedar shingles make the ideal roof for high specification log cabins. These genuine cedar roof shingles are traditionally made from Western Red Cedar. The individual cedar shingles are laid over a felted solid pine inner roof. Each individual cedar tile is a known as a shingle. Cedar shingles have long been a popular roofing material for domestic and public buildings in large parts of North America where cedar shingles have a reputation for warmth and longevity. Cedar has an unrivalled reputation for durability and cedar shingles often last for many decades. We use only the highest grade of shingles which are 100% heartwood, 100% free from defects and 100% edge grain. Heartwood edge grain is the densest possible cut which ensures maximum durability. All fixings are covered by the next row of tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture.

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.

UNTEARABLE ROOF FELT: This untearable mineral coated bitumen roofing felt is more durable than standard roofing felt. Standard felt is paper backed or fibreglass backed, both of which are very easy to tear or puncture. This weakness makes standard felt vulnerable to wind damage. Although our untearable roofing felt looks and feels the same it includes a concealed plastic membrane which makes it far stronger. The most common cause of damage to a standard felt roof is a gust of wind getting under the felt and tearing it. Once the felt is torn it is quickly ruined. Standard felt can be torn very easily but our untearable felt cannot be torn by hand without a cutting edge. Even aggressive attempts to tear the felt by hand will only wrinkle the edges as the hidden membrane is stretched.

UNDERFLOOR INSULATION: The underfloor insulation is designed to suit our timber floor. The rigid insulation boards are suspended between the floor joists and above the ground. The top face of the insulation is just below the floorboards. The solidity of the floor is unaffected by this design. The internal appearance is also unchanged with attractive and durable tongued and grooved boards. Detailed instructions are supplied. The floor insulation is expanded polystyrene, certified by the British Board of Agrement. It is 25mm thick to ensure ample clearance above the ground, which optimizes the performance of the insulation.

ROOF INSULATION: Our roof insulation is 50mm thick polyurethane foam with reflective silver alloy laminate facings on both sides. It is certified by the British Board of Agrement. The roof insulation is laid over the roof boards and below the roof covering. This ensures that the internal appearance is unchanged with attractive tongued and grooved boards. No internal lining boards are required. The kit features rigid foam boards which are lightweight and easy to install. If your order includes roofing felt or felt tiles longer nails are included for fixing through the insulation. If your order includes cedar shingles or granular steel tiles additional decking boards are supplied which are laid over the insulation to provide a suitable surface for fixing the tiles. Detailed instructions are supplied. The roof insulation increases the ridge height by approximately 50mm which may be of critical importance if you need to keep the overall height below 2.5m for planning purposes.

RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these recycled polypropylene pavers simply click together with no fixings needed. The interlocking design helps to spread weight and ensures greater rigidity. Weed membranes are not needed below a timber floor. The self draining design prolongs the life of a timber floor. Unlike paving or concrete our plastic bases are fully relocatable. The base is normally at least 2" or 50mm larger than your building. Where space permits the base is normally laid full size but if required in a tight location our plastic pavers can be cut. Fast delivery within 3-5 days ensures that you can start work quickly.

ECO-GRID BASE KITS: Eco-grids are recommended if the sub-base is soil, sand or pea shingle but not on hard surfaces such as concrete, because the underside is not flat. Integral pegs on the underside help to level the base grids more easily in soil or sand or shingle. Our eco-grid plastic bases can support up to 200 tonnes per square metre. We offer exactly the same eco-grids as driveways and carparks. Gravel or shingle infill is not required below a timber floor. Whatever you store in your building, our eco-grids will support the weight easily. Each eco-grid is 472mm x 472mm and 40mm thick with an immensely strong 60x60mm hexagonal cell structure. Extensive preparation is not normally required - just level the soil and lay the pavers directly on soil or on a thin layer of sand or pea shingle. Any exposed edges around the base can be left unfilled or filled with gravel or shingle.

ECO-PAVING BASE KITS: Eco-paving is recommended if the sub-base is a hard surface such as concrete or paving slabs, because the pavers feature a flat and level underside. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. Each eco-paver is 385mm x 385mm and 40mm thick. The pavers are quickly and easily easily laid over an existing hard surface.

WPC COMPOSITE DECKING KITS: This superb quality WPC wood plastic composite decking closely resembles real wood, with the same look and feel. However, it is virtually maintenance free and it will never rot. At a glance it is difficult to tell the difference between this composite material and real timber decking with a stained finish. Furthermore, the similarities are not skin deep like a thin veneer. The realistic finish has a fibrous surface which looks similar to the grain of real wood. This synthetic composite is also heavier and stronger than real wood. The strength, durability and lack of maintenance make this superb decking a popular choice with pensioners and discerning commercial buyers such as care homes. Occasional cleaning with soapy water normally restores the original appearance. If any dirt or stains become ingrained after prolonged neglect even the most stubborn marks can be cleaned with a pressure washer.

Our WPC composite decking is a revolutionary material which provides all the benefits of real wood without the maintenance. It can be left outside uncovered all year round. Unlike real wood this synthetic wood is a weatherproof material with no knots, splinters, machining marks or other imperfections. It will never develop splits or shakes and no sap will ever ooze out of it. Our wood plastic composite is an equal mixture of real wood and recycled plastic. Even the wood is a mixture of sawdust and unusable offcuts, so it is the ultimate environmentally friendly alternative to wood. The colour pigments are mixed in before the powdered composite is moulded into shape, so the colour runs all the way through the finished product. The boards are completely impervious to water. The boards can be sawn, drilled and screwed, just like real wood. You can fix it with standard woodscrews. Being heavier and denser than real wood, screw fixings are actually stronger in composite boards.

MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.

Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.

Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.

Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.

Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.

WATERPROOF COLOUR SEAL - DELIVERED TO YOUR DOOR: This advanced water-based microprous timber treatment uses the latest high-tech nanotechnology to create a long-lasting waterproof wood coating that is environmentally friendly. It is suitable for use on all softwood and hardwood products and is especially recommended for use on pressure treated timber, including sheds, summerhouses, gazebos, fencing and garden furniture. This timber treatment will colour, protect and enhance your exterior wood. It contains a mould inhibitor to protect the coating and can be used on all outside and inside timber. It gives a traditional matt wood stain finish in a range of natural colours. It can easily be applied by sprayer, brush or roller. It is recommended that the second coat is applied as soon as the first coat is touch dry. We advise for ultimate performance the timber has a wood preservative pre-treatment. For the first treatment, two coats are recommended and will give a traditional wood stain finish that is long lasting. A further coat is recommended every 2-5 years. One litre covers approximately 10-12 square metres. Coverage varies according to the smoothness of the surface and the porosity of the timber. On average five litres covers a 12x8 shed with two coats and ten litres covers a 10x20 with three coats. It is recommended that 2 coats be applied. We recommend that you order more than you need to be sure that you have easily enough. The appearance of colours and shades may vary between different screens or devices. Prices include free mainland delivery to England, Wales and southern Scotland.

WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.

NATURAL WOOD OIL - DELIVERED TO YOUR DOOR: Our traditional wood oil preservative is linseed oil based and provides a natural ecologically friendly alternative to modern alkyd based preservatives. Wood oil combines the waterproofing qualities of a paint finish with the high absorption rate of woodstain. The natural oiliness provides a highly water repellent surface which protects the wood from moisture. The oil also penetrates deep into the wood and emphasizes the grain. The high elasticity of wood oil allows it to expand and contract with the wood as climatic conditions vary. Three coats are recommended with a further coat after 1-3 years. One litre covers approximately 12 to 16 square metres. Coverage varies according to the smoothness and porosity of the timber so you should order more than you need. On average five litres covers a 10x8 log cabin with three coats and ten litres covers a 20x13 log cabin with 3 coats. Colours are only as accurate as reproductive techniques allow. Prices include free mainland delivery to England, Wales and southern Scotland.

BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.
