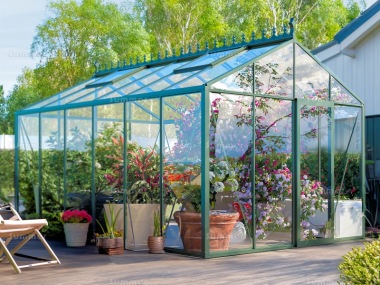

Aluminium Greenhouse 751 - Box Section, Powder Coated

• Powder coated aluminium framing
• Box section aluminium framing throughout with hollow chambers to provide greater strength and rigidity
• Box section glazing bars, corner posts, cills, eaves beams and ridge beam
• Box section cills make a separate base plinth unnecessary, which makes installation easier
• Full height glazing where practical with no unsightly glass overlaps
• Neat glazing with no wire clips
• Unique thick black rubber glazing gaskets provide a neat finish and continuously retain the edges of the glazing
• Durable metal retaining clips ensure that the roof glass is retained securely at the eaves
• Integral gutter to each side with stopends, outlets and full length downpipes
• Low threshold doorway for easy access
• Sliding door
• Heavy duty wheel door rollers for better performance and durability
• Choice of door position
• Diagonal corner braces in every wall to provide greater structural rigidity
• Eaves struts reinforce the connection between the side walls and the roof
• Ridge struts reinforce the connection between each side of the roof
• 1 free roof vent complete with automatic opener (5'3", 7'9" and 10'2" long greenhouses)
• 2 free roof vents complete with automatic opener (12'7" long greenhouse)
• 3 free roof vents complete with automatic opener (15'1" long greenhouse)
• 4 free roof vents complete with automatic opener (17'6" and 19'11" long greenhouses)

7'9" wide greenhouses

• Door width approximately 2'7" (780mm)
• Door height approximately 5'4" (1636mm)
• Eaves height approximately 5'10" (1769mm)
• Ridge height approximately 7'8" (2333mm)

10'2" wide greenhouses

• Door width approximately 2'7" (780mm)
• Door height approximately 6'1" (1850mm)
• Eaves height approximately 6'4" (1939mm)
• Ridge height approximately 8'9" (2678mm)

THIS PREMIUM QUALITY GREENHOUSE: These high quality premium greenhouses are built to a specification which was originally developed for conservatories and not greenhouses. The heavy duty aluminium frame features box section aluminium glazing bars, corner posts and ridge beam. In addition, the base cills feature heavy duty box section beams. The basic prices include 4mm thick toughened safety glass as standard with 6mm twinwall polycarbonate available as an option. The glazing is retained neatly with a substantial rubber external gasket. The edges of the glass are completely concealed. The sophisticated glazing system is stronger and neater than other greenhouse glazing systems. Other standard features include free gutters with downpipes and stop ends.

CORNER PEGS: The cills include corner pegs which are designed to be buried in the ground or set in concrete. This is recommended in less sheltered locations. The pegs are used as angle brackets to fix the corners together but they also extend downwards into the ground. If your greenhouse is sited on an existing patio or paved area you can cut the pegs off at ground level.

POWDER COATED ALUMINIUM: The powder coated finish is more attractive than the stark silver finish aluminium greenhouses. The tough finish also has excellent weathering properties and retains its gloss and colour superbly. A good example of powder coating is the finish on your washing machine. Powder coated aluminium greenhouses have a similar finish.

CLIP FREE GLAZING SYSTEM: Unlike most greenhouses, the glazing system does not require any wire clips or bar capping strips. The glazing is retained neatly with a substantial rubber external gasket. This glazing system was originally developed for conservatory glazing. It is a sophisticated glazing system which is stronger and neater than other greenhouse glazing systems. The glazing panels are held in position along the entire length of the glazing bar. As a result, when the frame is fully assembled the glazing panels are more securely fixed and do not come out so easily.

STRUCTURAL CILLS: This greenhouse includes low profile structural cills. A separate base plinth is not required. Structural cills are designed to suit a low threshold doorway. They are stronger than normal greenhouse cills with a lower profile than a traditional base plinth. Structural cills feature a flat underside to spread the weight of the greenhouse over a larger area. They can be placed on concrete, paving slabs, bricks or decking but structural cills should not be placed on soil or gravel.

GREENHOUSE LOCATION: Ideally your greenhouse should have a clear space at least 18" wide on all sides, if possible. This ensures easy access for both installation and future maintenance. In reality this is often not practical and at many sites it is not needed. A reduced clearance is often possible on one or two sides. You should cut back or remove any nearby shrubs and trees. Remember to allow for future growth. Ideally the ridge of a greenhouse should run from east to west. The best position for a freestanding greenhouse is a sunny spot outside the shadow of nearby buildings and trees. A sheltered position is best otherwise additional screening may be advisable. Polycarbonate glazing is not recommended at exposed sites. Plants need plenty of water so your greenhouse should be close to a water supply and the site should be well drained.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. All sizes are approximate.

• Installation
• Powder coated finish in a choice of colours
• Powder coated finish in any other RAL colour - we will contact you to discuss your requirements
• Toughened safety glass throughout, 6mm twin wall polycarbonate glazing throughout or toughened glass walls with polycarbonate roof
• Ridge crests and finials - length and colour to suit the greenhouse
• Door can be positioned in the gable end wall or in a side wall. This can be decided on site and does not need to be specified when ordering.
• Upgrade to double sliding doors
• Additional doors - colour to suit the greenhouse
• Additional roof vents - colour to suit the greenhouse
• Potting trays
• Seed trays
• Propagators
• Electric and gas heaters
• Automatic watering systems
• Thermometers and soil gauges
• Hanging basket brackets

TOUGHENED GLASS: Toughened glass is the best glazing material for use in greenhouses. It is around 6 times stronger than normal glass so it is less likely to break and when it does break toughened glass breaks into harmless small pieces. This makes toughened glass the best option for all the family including children, pets and the elderly. Toughened glass also strengthens the frame and it is heavy which helps to resist wind. Although size limits apply, toughened glass panes are longer than horticultural glass, with no overlapping glass and fewer joins. Where required, joins are neat in-line H-profile joins. All glass supplied is 4mm thick toughened safety glass.

TWIN WALL POLYCARBONATE: Twin wall polycarbonate is virtually unbreakable and very practical. With small children or pets around polycarbonate greenhouses are safer. Polycarbonate is also safer to handle during installation. Polycarbonate greenhouses provide a similar growing environment to glass greenhouses with better insulation properties and reduced glare. Polycarbonate also provides good insulation from frost and maintains a more even temperature for better plant growth. Twin wall polycarbonate also diffuses light to prevent scorching. Twin wall polycarbonate glazing is stronger than the flimsy single skin polycarbonate sheeting supplied with some greenhouses.

HEATERS: We offer a huge range of heaters so whatever your specific requirements we have a heater to do the job. Our electric heaters require a standard domestic 13 amp electricity supply. Our propane gas heaters require permanent trickle ventilation when in use. As an approximate guide, a 3kw heater will heat a greenhouse up to 8'x12' or provide frost protection only up to 10'x15' in normal site conditions. A 1.5kw heater will normally heat a greenhouse up to 6'x8' or provide frost protection only up to 6'x12'. Internal partitions are often used in large greenhouses to create a smaller warm room which is cheaper and easier to heat.

HEATING REQUIREMENTS: Heating requirements vary for several reasons. Location is one factor with more heating required in Scotland than in southern England and less heating required in a sheltered position. The design is also a factor. For example, dwarf walls improve the insulation and lean to greenhouses absorb warmth from the existing wall. Another factor is the materials used. Polycarbonate greenhouses retain heat better than glass and wooden greenhouses retain heat better than metal greenhouses. We recommend you to buy a bigger heater than you need - you can always turn it down.

RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are a practical and affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these 100% recycled polypropylene pavers simply click together with no fixings needed. The interlocking design ensures greater rigidity. Designed to spread weight, our plastic bases are self draining and fully relocatable, unlike paving or concrete. A fully paved base has no soil inside the greenhouse. Alternatively, a perimeter base features a single row of pavers laid around the perimeter of the greenhouse with soil inside. You can also add a footpath in the centre of a perimeter base. The base is normally at least 2" or 50mm larger than your building. Where space permits the base is normally laid full size but if required in a tight location our plastic pavers can be cut. Fast delivery within 3-5 days ensures that you can start work quickly.

ECO-GRID BASE KITS: Eco-grids are recommended if the sub-base is soil, sand or pea shingle but not on hard surfaces such as concrete, because the underside is not flat. Integral pegs on the underside help to level the base grids more easily in soil or sand or shingle. Our eco-grid plastic bases can support up to 200 tonnes per square metre. We supply exactly the same eco-grids for use in driveways and carparks. Each eco-grid is 472mm x 472mm and 40mm thick with an immensely strong 60x60mm hexagonal cell structure. The kits include weed control membrane which is laid below the pavers. Extensive preparation is not normally required. First the ground is levelled and then the membrane is laid directly on the soil. The pavers are laid on the membrane or on a thin layer of sand or pea shingle. The pavers should be backfilled with gravel or pea shingle which is not supplied. Approximately 15-20kg of shingle is required per paver. We recommend checking this with your supplier or, if you can, buy less gravel than you need to start with.

ECO-PAVING KITS - BASES, FLOORS AND FOOTPATHS: This durable floor kit is a practical and affordable alternative to slabs or concrete. Easy to install within a few minutes, these recycled polypropylene pavers simply click together with no fixings needed. The pavers are easily prised apart so the floor is even quicker to remove if required. Eco-paving is recommended if the sub-base is a hard surface such as concrete or paving slabs, because the pavers feature a flat and level underside. Our eco-paving is less brittle than concrete paving slabs, with a strong supporting structure. The surface looks and feels similar to pressed concrete slabs, with a slightly textured finish. Each eco-paver is 385mm x 385mm and 40mm thick. The pavers are quickly and easily laid over an existing hard surface. Laying eco-paving directly on soil is not recommended. Eco-pavers can be laid on a layer of gravel or pea shingle if it is carefully compacted and levelled. The kits include weed control membrane which can be laid below the pavers. Each paver should be fully supported. Eco-pavers can be used to build a perimeter base but care is required to provide a solid sub-base. Ideally the sub-base should be concrete or a similar hard surface.

The Eco-paving internal floor sometimes fits comfortably inside the greenhouse with a few inches to spare. Sometimes it is overlength but it can be cut to fit. The finished floor is self draining and suitable for wheelbarrows and wheelchairs. Laying eco-paving directly on soil is not recommended. Eco-pavers can be laid on a layer of gravel or pea shingle if it is carefully compacted and levelled. Each paver should be fully supported.

A durable Eco-paving footpath is inexpensive and easy to install inside any greenhouse. The footpath is normally laid inside the greenhouse after the assembly is completed. The kit sometimes fits comfortably inside the greenhouse with a few inches to spare. Sometimes it is overlength but it can be cut to fit. Designed to spread weight, the finished floor or footpath is self draining and suitable for wheelbarrows. Laying eco-paving directly on soil is not recommended. Eco-pavers can be laid on a layer of gravel or pea shingle if it is carefully compacted and levelled. Each paver should be fully supported.
