Wooden Gazebo 333 - Lean To, Felt Tiles
1
2
3
Play Video

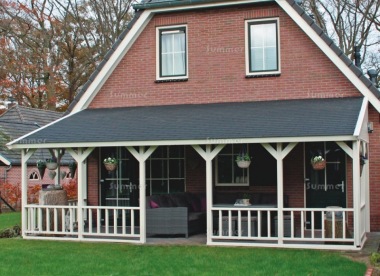

Picture 1 shows the standard 9'10"x24'7" gazebo with the entrance to the front (3.0x7.5m). Picture 2 shows the standard 9'10"x14'9" gazebo with the entrance to the side (3.0x4.5m). Picture 3 shows the optional paint colours available

Summary:

This deluxe wooden gazebo is available up to approximately 34' (10.5m) long with a projection from the host wall of up to 13' (4.0m). It features substantial 5"x5" posts (120x120mm) and superb quality joinery balustrades fitted around the perimeter. You can choose the entrance in the front or in the side to suit your individual requirements. The roof is made from attractive and durable tongued and grooved boards. The price includes decorative felt tiles in a choice of colours. A heavy duty timber floor is available as an option with durable larch decking boards. These luxury gazebos are ideal for use as a hot tub cover or smoking shelter. Instructions are supplied for easy self assembly. We offer fitting as a low cost option in many areas.

Back to the Top
  • Individually made to order.
  • Side wall projection up to 13'1" or 4.0m
  • Front wall length up to 34'5" or 10.5m
  • Suitable as a smoking shelter
  • Possible use as a hot tub cover
  • All timber used in the construction of this gazebo originates from sustainable forests
  • Superb quality joinery balustrades fitted around the perimeter of the gazebo
  • The standard design includes an entrance in the front or in the side
  • Strong 120mm x 120mm posts with angled braces
  • Side walls between 2.5m and 4.0m wide include 3 posts (2 corner posts and 1 intermediate post)
  • Front walls 3.0m long and smaller include 3 posts (2 corner posts and 1 intermediate post)
  • Front walls between 3.1m and 6.0m long include 4 posts (2 corner posts and 2 intermediate posts)
  • Front walls between 6.1m and 7.5m long include 5 posts (2 corner posts and 3 intermediate posts)
  • Front walls between 7.6m and 9.0m long include 6 posts (2 corner posts and 4 intermediate posts)
  • Front walls between 9.1m and 10.5m long include 7 posts (2 corner posts and 5 intermediate posts)
  • The roof is supplied unassembled with the rafters and roof boards cut to size
  • 19mm thick tongued and grooved roof boards (finished size after machining)
  • Decorative mineral felt tiles included in a choice of colours
  • Flashing between the wall and the gazebo is not supplied
  • Eaves height approximately 7'3" (2200mm)
  • Internal ridge height approximately 9'2" or 2800mm (2.5m deep gazebos)
  • External ridge height approximately 9'10" or 3000mm (2.5m deep gazebos)
  • External roof overhang approximately 12" to the front (300mm)
  • External gazebo projection (side wall) - 2.5m (8'2"), 3.0m (9'10") or 4.0m (13'1")
  • External gazebo length (front wall) - 3.0m (9'10"), 4.5m (14'9"), 6.0m (19'8"), 7.5m (24'7"), 9.0m (29'6") or 10.5m (34'5")
  • This building is easy to deliver if access is restricted - all sections will pass through a normal single door

NORDIC SPRUCE: This building is manufactured from 100% Nordic Spruce, the best quality timber used in log cabin construction. Nordic Spruce is grown primarily in the well managed forests of Scandinavia, Siberia and the coldest parts of Northern Europe. The cold climate ensures slow growth. The growth rings are much closer together than trees grown in warmer climates. As a result the timber is heavy and durable with a dense grain pattern. These forests are expertly managed on a sustainable basis so Nordic Spruce is an enviromentally friendly choice.

DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. Over time each tile sticks to the tile below for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.

LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the projection and the second dimension is the length. The projection is measured from the existing building. The length refers to the front wall. All sizes quoted are the external gazebo sizes and do not include any roof overhang, unless stated otherwise. All sizes are approximate.
