Gazebo 104-G - Metal, Hipped Roof, Side Screens

Not your postcode?
Setting the first half of your postcode shows you the full choice in your area.
In a moment you may be asked to share your location. Please allow this so that we can show you the full choice in your area (inclusive of delivery charges). You may also set your location manually using the button above.

Click this messge to hide it.
Gazebo 104-G - Metal, Hipped Roof, Side Screens
1
2
3
4
5
6
Play Video
Play Video

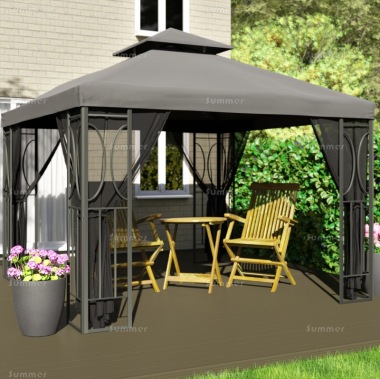

Pictures 1, 2, 3 and 4 show the standard 10'x10' gazebo. Pictures 4 shows a corner panel. Picture 5 shows the eaves corner brackets, the main ridge spider and the secondary ridge. Video 1 shows the features and benefits of this model.

Summary:

This popular metal gazebo is approximately 8'x8' or 10'x10' (2.5x2.5m or 3.0x3.0m). Standard features include a powder coated steel frame with mesh insect screens to all sides and a roof canopy with roof vent. The roof canopy is showerproof polyester. The mesh insect screens are fully retractable. The base rails include pre-drilled holes for fixing down into a patio or lawn. The canopy and nets are easily removed. Detailed instructions are supplied for DIY self assembly.

Back to the Top
  • 8 welded corner panels approximately 16" wide (400mm) with a square trellis pattern
  • All steel is powder coated
  • Showerproof roof canopy with treated polyester
  • Roof vent included
  • Canopy fabric weighs 180 grammes per square metre
  • Side net curtains feature 40 grammes per square metre treated polyester
  • Side net curtains feature fine mesh insect screens
  • Side net screens are fully retractable with matching ties
  • All fabrics are easily removed
  • All components required for assembly are supplied cut to length and pre-drilled
  • Prefabricated roof joints ensure greater strength and easier installation
  • The corner panels are supplied prefabricated in one piece to ensure easier installation
  • Predrilled steel base rails ensure easy fixing into any surface including concrete, slabs, decking or lawn
  • Ground anchor pegs are included for use when the gazebo is sited on a lawn
  • Quick and easy installation with just 72 bolts required to complete the assembly
  • Ridge height including roof vent 8'6" or 2.6m (8'x8' gazebo)
  • Ridge height including roof vent 8'10" or 2.7m (10'x10' gazebo)
  • Eaves height 6'7" (2.0m)

RESIN COATED STEEL: Tubular steel is cut to size and drilled or welded as required to form a lightweight and strong frame. The steel is resin coated, a tough paint finish which has excellent weathering properties.

REMOVABLE SHOWERPROOF CANOPY: This gazebo features a removable canopy with quick release straps which make it easier to remove. At the end of the summer season the canopy should be removed for winter storage. The canopy should also be removed in windy weather. These simple measures will prolong the life of the canopy and protect your investment. The canopy is primarily a sunshade but it is also showerproof. It provides protection from light rain for a short period but some water ingress may occur during a prolonged downpour.

FABRICS: Use mild soapy water and a soft sponge to clean the fabrics. Abrasive cloths or cleaning fluids may damage the surfaces. The canopy and curtains are produced separately using fabrics of different thickness and weight with different surface coatings and some variation in colour and texture may be apparent. The curtains should not be permanently closed and should be returned to the fully open position after each use. The curtains should not be closed in windy weather and should be removed for winter storage.

Back to the Top
