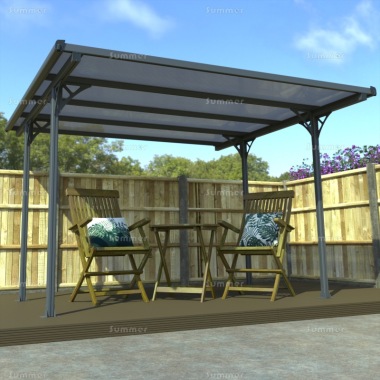

Aluminium Gazebo 490 - Adjustable Posts, Polycarbonate Roof

• Powder coated aluminium frame
• Virtually no maintenance required
• Extruded hollow section box profile profile framing throughout with concealed full length stiffeners to provide extra strength and rigidity
• Extruded 60mm x 60mm box profile aluminium posts with rounded corners
• Extruded 70mm x 60mm box profile aluminium eaves beam
• Extruded 60mm x 40mm box profile aluminium glazing bars
• Extruded structural aluminium gutter
• Aluminium posts approximately 6'3" long (1900mm)
• Tinted 6mm thick twinwall polycarbonate roof
• Glazing bars at approximately 28" centres (725mm)
• Integral glazing system holds the polycarbonate glazing in position securely
• The unique glazing bar design retains the polycarbonate panels with continuous vertical grooves to each side
• Moulded gutter stop end outlets included, with downpipe connectors suitable for rigid pipes or flexible hoses
• Moulded glazing bar end plates included
• Pre-drilled base plates ensure easy fixing into any hard surface including concrete, paving or decking
• All components required for assembly are supplied cut to length and pre-drilled
• Overall external height approximately 6'9" (2050mm)
• Internal height to underside of glazing bars approximately 6'3" (1900mm)
• Adjustable post positions - the design allows the posts to be set in from the eaves beam if required to avoid an obstruction
• Maximum available internal width between the posts in the front 10' (3.1m) wide wall approximately 9'1" (2.78m)
• If you cut the posts to reduce the height you may need to drill new holes in order to attach the base plates.
• In normal circumstances we do not advise cutting the posts by more than 150mm (6"), which reduces the clearance below the eaves beam to around 1750mm (5'9").

10' x 10' gazebo (3.1m x 2.9m)

• Overall external roof size 10'3" wide x 9'7" long (3.13m x 2.91m)
• Base size with standard post positions 9'6" wide x 4'9" long (2.90m x 1.46m)
• Fixed internal width between the posts in the 9'7" long side wall approximately 4'5" (1.34m)
• 4 aluminium posts included
• 3 triangular powder coated steel eaves braces per post to ensure stability

10' x 16' gazebo (3.1m x 5.0m)

• Overall external roof size 10'3" wide x 16'6" long (3.13m x 5.02m)
• Base size with standard post positions 9'6" wide x 11'9" long (2.90m x 3.57m)
• Fixed internal width between the posts in the 16'6" long side wall approximately 5'6" (1.69m)
• 6 aluminium posts included
• 3 triangular powder coated steel eaves braces per corner post to ensure stability
• 2 triangular powder coated steel eaves braces per intermediate post to ensure stability

POWDER COATED ALUMINIUM: Extruded hollow section aluminium profiles are cut to size and drilled or welded to form a lightweight and strong frame. Aluminium is ideal for outside use because it does not corrode like steel. The aluminium is powder coated, a tough paint finish which has excellent weathering properties.

TWIN WALL POLYCARBONATE: Twin wall polycarbonate is virtually unbreakable and very practical. Polycarbonate is safe with small children or pets around and easy to handle during installation. Tinted polycarbonate reduces glare by diffusing light in the same way as sunglasses.

SIZES - WIDTH AND LENGTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The roof sheets and glazing bars run across the width of the building. The sizes listed are the overall roof sizes. All sizes are approximate.

• Next day delivery or delay the delivery until you're ready at the same price
• C profile roof sheet end closures
• A choice of composite decking kits

SHEET END CLOSURES: These C profile end closures help stiffen the roof sheets, which can add to the durability of the sheets at more exposed sites by minimising the amount the sheets can flex in the wind. As an added benefit, capping the sheets also helps keep them cleaner by reducing the amount of dirt and grit, etc, which can get into the flutes in the polycarbonate.

WPC COMPOSITE DECKING KITS: This superb quality WPC wood plastic composite decking closely resembles real wood, with the same look and feel. However, it is virtually maintenance free and it will never rot. At a glance it is difficult to tell the difference between this composite material and real timber decking with a stained finish. Furthermore, the similarities are not skin deep like a thin veneer. The realistic finish has a fibrous surface which looks similar to the grain of real wood. This synthetic composite is also heavier and stronger than real wood. The strength, durability and lack of maintenance make this superb decking a popular choice with pensioners and discerning commercial buyers such as care homes. Occasional cleaning with soapy water normally restores the original appearance. If any dirt or stains become ingrained after prolonged neglect even the most stubborn marks can be cleaned with a pressure washer.

Our WPC composite decking is a revolutionary material which provides all the benefits of real wood without the maintenance. It can be left outside uncovered all year round. Unlike real wood this synthetic wood is a weatherproof material with no knots, splinters, machining marks or other imperfections. It will never develop splits or shakes and no sap will ever ooze out of it. Our wood plastic composite is an equal mixture of real wood and recycled plastic. Even the wood is a mixture of sawdust and unusable offcuts, so it is the ultimate environmentally friendly alternative to wood. The colour pigments are mixed in before the powdered composite is moulded into shape, so the colour runs all the way through the finished product. The boards are completely impervious to water. The boards can be sawn, drilled and screwed, just like real wood. You can fix it with standard woodscrews. Being heavier and denser than real wood, screw fixings are actually stronger in composite boards.
