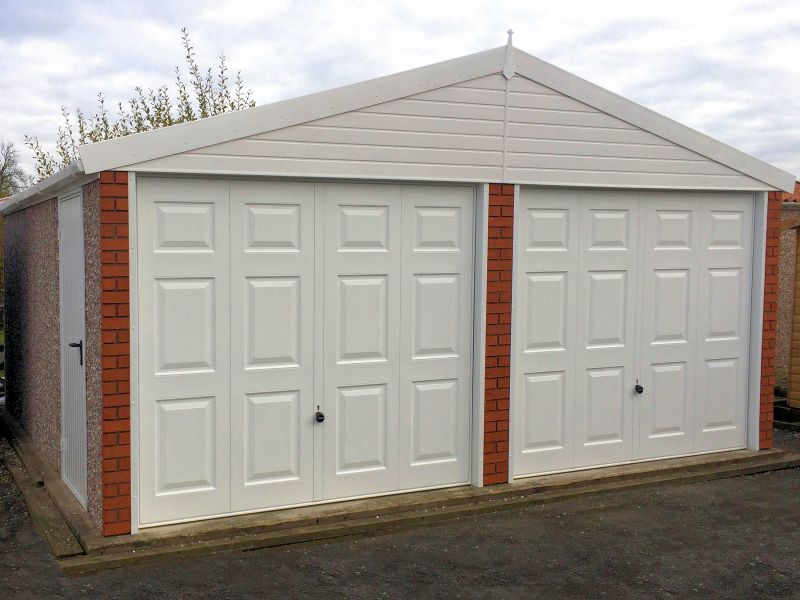

Spar Apex Double Concrete Garage 513 - Brick Posts, PVCu Windows and Fascias

• Free same day installation
• Free mortar fillet to the internal walls
• 10 year structural guarantee
• External pebbledash finish with Canterbury Spar chippings
• Large full height panels with fewer joins and neater internal lines
• Attractive smooth vibrated internal finish
• Strong interlocking rebated concrete panels
• Galvanized bolts
• Large open plan internal layout
• High pitch apex roof with 15 degrees pitch
• Welded steel roof trusses with red oxide finish
• Substantial pressure treated timber roof purlins (lifetime preservative treatment)
• Tile-effect steel roof sheets with no drip anti-condensation coating inside and plastisol coated finish outside
• Foam filler to eaves
• Low maintenance PVCu gables and fascias
• Decorative brick front piers
• Two free non opening 2 pane double glazed PVCu windows 4' wide x 2'6" high (1220mm x 750mm)
• Square line PVCu guttering with downpipes
• Vertically ribbed white powder coated finish galvanized steel personnel door 3' wide (915mm)
• Fully retractable galvanized steel up and over doors, Georgian style with white powder coated finish
• White PVCu clad door frame
• Up and over door height 6'6" (1980mm)
• Minimum up and over door clearance height 6'2" (1880mm)
• Garages 16' wide feature two 7' (2130mm) wide up and over doors
• Garages 18' and 20' wide feature two 8' (2440mm) wide up and over doors
• Garages 22' and 24' wide feature two 9' (2740mm) wide up and over doors
• Garages 26' wide feature two 10' (3050mm) wide up and over doors
• Standard eaves height 6'6" (1980mm)
• External ridge height approximately 9'0" or 2730mm (16' wide garages)
• External ridge height approximately 9'3" or 2800mm (18' wide garages)
• External ridge height approximately 9'6" or 2890mm (20' wide garages)
• External ridge height approximately 9'9" or 2970mm (22' wide garages)
• External ridge height approximately 10'0" or 3050mm (24' wide garages)
• External ridge height approximately 10'4" or 3140mm (26' wide garages)

FREE SAME DAY INSTALLATION - THE BENEFITS: Our free in house installation service is not just convenient, it is also your assurance of a better quality sectional garage. This is because any building which includes free installation is invariably better made using quality components. Over time regular feedback from fitters ensures that design faults and weaknesses have been rectified. Same day installation is convenient for you and cost effective because it saves travelling costs. The fitters will deliver your sectional garage and then install it, all at the same time. Others send sub-contract fitters separately, often from far away and often a week or two after the delivery. Waiting for the fitter can be very frustrating. Sub-contract fitting is also much more expensive because of the travelling costs. The fitting service does not include base preparation. A flat and level base is required, which should be made using concrete. In many areas we offer a base laying service as an option.

CONCRETE GARAGES - THE BENEFITS: Many of our timber garages and log cabin garages are solid, well made and likely to last a long time with very little maintenance. However, nothing can match the solidity and durability of a sectional concrete garage. If you choose PVCu windows and gables your concrete garage will be almost completely maintenance free. Sectional concrete garages rank highly as one of the most desirable home improvements.

SPAR FINISH: The heavy duty concrete panels are approximately 65mm thick and steel reinforced. The panels are finished outside with colourful Canterbury Spar chippings and inside with a smooth vibrated finish inside to ensure a neat appearance inside and out. The panels are full height and up to 24" wide so the number of joins is reduced to a minimum. The smooth internal finish is attractive in itself but it is also easy to paint which provides a stunning internal finish.

FULLY RETRACTABLE UP AND OVER DOORS: Our up and over doors are fully retractable, which is neater and stronger than the canopy doors supplied with most garages. Although the door projects during opening there is no projection once the door is fully open. The performance is smoother and more reliable than a canopy door with no wire cables to maintain. Instead the door features heavy duty springs and the wheels are firmly retained in rigid metal channels. An anti-fall safeguard ensures that even if a spring fails the door is held in position. The design ensures no steel to steel contact and a spring buffer stop ensures that the door comes to a safe stop when fully open. An internal handle and lock are included. The four point locking system (fitted as standard to garage doors 9' wide or less) ensures security. All doors are powder coated white.

WELDED STEEL ROOF TRUSSES: All garages feature a substantial roof structure with one piece welded steel trusses which span from side to side. The trusses are bolted to the concrete panels and spaced up to 6' apart. All trusses have a red oxide factory primed finish.

PRESSURE TREATED TIMBER: Pressure treatment is a lifetime preservative treatment. The preservative is forced deep into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently bonded to the cell structure of the wood at a molecular level. Tanalith E is a widely used water based version so pressure treated wood is often described as tanalised. Pressure treated wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with a suitable wood preservative in any colour.

TILE-EFFECT ANTI-CONDENSATION ROOF SHEETS: These heavy duty galvanized steel roof sheets have a no drip anti-condensation layer on the underside. The outside has an attractive tile-effect appearance with a plastisol coated finish for added longevity. The absorbent fibrous mat applied to the underside of the steel roof sheets absorbs condensation. The fibrous mat absorbs water which then evaporates when the temperature rises. It is a permanent felt based moisture barrier which is applied to the metal sheet during manufacture. The anti-condensation coating is a light grey colour with an attractive fabric finish.

INTERNAL MORTAR FILLET: The price includes laying a mortar fillet on the inside of your building between the concrete panels and the base to prevent water ingress under the walls. This important finishing touch is not always included with other concrete buildings.

INTERNAL SIZES AND BASE SIZES: Concrete garages require a substantial concrete base which should be slightly larger than the garage. The ideal size is 3" or 75mm bigger than the garage on all sides. To calculate the correct base size for any garage just add 6" or 150mm to the external garage width and 6" or 150mm to the external garage length. Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed near the prices at the top of the page. The internal sizes are approximately 5" or 125mm smaller than the external sizes. All sizes are approximate.

SIZES - LENGTH AND WIDTH: Sizes are sometimes rounded to the nearest nominal size for ease of reading but the correct external wall sizes are listed alongside the price. The first dimension listed is the width and the second dimension is the length. The width refers to the angled gable walls at the front and rear including the door wall. The length refers to the side walls. The sizes listed are the external wall sizes. These sizes do not include the roof overhang. All sizes are approximate.

• Choice of window and door positions - windows and personnel doors can be positioned almost anywhere to suit your needs
• Brick front piers in a choice of brick colours
• Tile-effect roof sheets in a choice of colours
• Choice of black, brown or white PVCu guttering and downpipe fitted to both sides
• Additional PVCu windows
• Available with no windows for improved security at no additional cost
• Insulated tile-effect steel roof sheets with plastisol coated finish outside
• Granular steel roof tiles in a choice of colours
• Remote control electric door openers
• Internal partitions
• Higher walls with higher doors to accommodate larger vehicles. Please note some door styles/widths may not be available with extra height.
• Throughway garages are available with an additional up and over door in the rear wall. Please note that with some sizes of garage the width of the up & over doors may need to be changed for structural reasons.
• Portable indoor gas heaters - no need for an electricity supply or trailing leads

POSITION OF WINDOWS AND DOORS: If you like you can order your garage without specifying the door and window positions - if so, we will contact you to discuss your requirements. If you prefer, you can order your garage online and use the Design Option choices to specify where you want the windows and doors to be located. All designs are as viewed from outside. For structural reasons it is not usually possible to position windows or doors in the corner panels or directly under roof trusses. For this reason all positions chosen should be considered approximate. In addition, there should be at least one full height concrete panel between each door or window. The concrete panels are each 2ft wide. Personnel doors are two concrete panels wide regardless of door width.

TILE-EFFECT INSULATED ROOF SHEETS: These heavy duty galvanized steel roof sheets have a 40mm thick insulating lining board on the underside, giving a smooth internal finish. The outside has an attractive tile-effect appearance with a plastisol coated finish for added longevity. Insulation gives a more comfortable working environment year round.

GRANULAR STEEL ROOF TILES: These lightweight granular steel roof tiles include a 40 year manufacturer's guarantee. The tiles have been tried and tested in every climate throughout the world from hurricanes and hailstones to heatwaves. Uses include homes, flats, schools, offices and all types of buildings. The tiles are pressed from galvanized steel with further protective layers of weather resistant acrylic and a coverage of natural stone chips. An environmentally friendly fungicide is contained within the coating to ensure no moss or lichen growth and resistance to UV radiation ensures reduced colour fading. The appearance of colours and shades may vary between different screens or devices.

REMOTE CONTROL DOOR OPENING: The price includes supply and installation to your power supply within 1 meter of the control unit. If no electrical supply is available we will fully programme the unit using extension leads. Two hand transmitters are included. A reliable automatic cut-out stops the door immediately if an obstruction is encountered. The patented toothed drive belt is non metallic and maintenance-free. An internal emergency release is included. A "soft" start and "soft" stop saves wear and tear on both the door and operator. The door automatically latches on closing, making it impossible to lever it open. Automatic door latching affords effective protection against forced opening. This unique automatic latching system is a mechanical device, so it remains fully functional even in the event of a power failure. For greater security the unit features a rolling programme which cannot be scanned from outside. Extra hand transmitters are available if more than two users are likely.

REMOTE CONTROL DOOR OPENING - MANUAL RELEASE: The manual release kit is required whenever remote control opening is specified in a garage with no other doors. Without it, in the event of a power failure you could be locked out of your garage with no means of opening the door. Once the manual release kit is fitted, if there is no power going to the remote opener you can still access the garage by opening the up & over door using a key.

INTERNAL PARTITIONS: If required partitions are available so you can create a separate area within the building. This area could be accessed by fitting a personnel door in an external wall or in the partition itself. If your order includes internal partitions we will contact you to discuss your requirements.

EXTRA HIGH 7' EAVES: The optional 7'0" (2135mm) eaves height features 7'0" (2135mm) high concrete panels and a 7'0" (2135mm) high up and over door with 6'8" (2035mm) clearance. The door heights and clearances are the same for the horizontally ribbed, vertically ribbed and the Georgian doors. Any windows fitted also increase in height to 3'0" (900mm).

EXTRA HIGH 7'6" EAVES: The optional 7'6" (2285mm) eaves height features 7'0" (2135mm) high concrete panels with a 6" (150mm) wide eaves beam. Any up & over doors up to 8' wide will be 7'6" (2285mm) high with 7'2" (2185mm) clearance. Any up & over doors wider than 8' wide will be 7'0" (2135mm) high with approximately 6'8" (2035mm) clearance. If the door is 7'6" high, the only design style available is the vertically ribbed. The door heights and clearances are the same for the horizontally ribbed, vertically ribbed and the Georgian doors. Any windows fitted also increase in height to 3'0" (900mm).

EXTRA HIGH 8'0" EAVES: The optional 8'0" (2435mm) eaves height features 7'0" (2135mm) high concrete panels with a 12" (300mm) wide eaves beam. Any up & over doors up to 8' wide will be 7'6" (2285mm) high with 7'2" (2185mm) clearance. Any up & over doors wider than 8' wide will be 7'0" (2135mm) high with approximately 6'8" (2035mm) clearance. If the door is 7'6" high, the only design style available is the vertically ribbed. The door heights and clearances are the same for the horizontally ribbed, vertically ribbed and the Georgian doors. Any windows fitted also increase in height to 3'0" (900mm).
